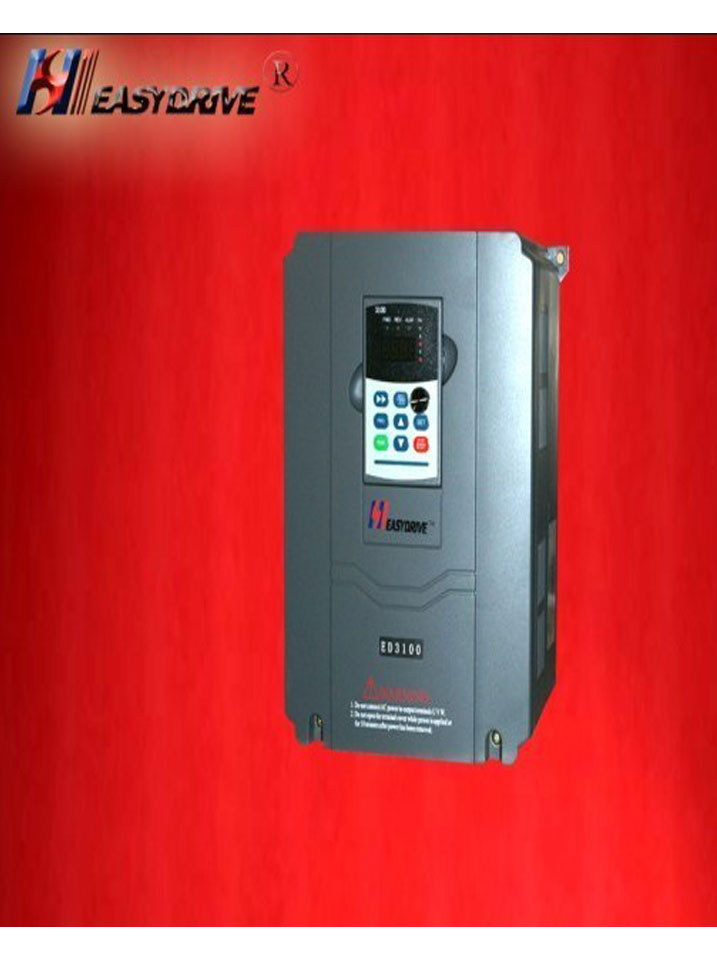

ED3100
|
Specifications
|
|
|
Input
|
Rated voltage and frequency
|
Single-phase 220V, three-phase 220V,
three-phase 380V; 50Hz/60Hz
|
|
Variable allowable value
|
Voltage: -20% +20
Voltage unbalance: <3% Frequency: ±5
|
|
Output
|
Rated voltage
|
0200V /0380V
|
|
Frequency range
|
0Hz400Hz
|
|
Overload capability
|
150% for 1 min, 180% for 1s, 200% instant protection
|
|
Main control function
|
Control mode
|
Space voltage vector PWM control ;
Sensorless vector control (SVC)
|
|
Frequency accuracy
|
Digital setting: Max frequency ×±0. 01%
Analog setting: Max frequency ×±0. 2%
|
|
Frequency resolution
|
Digital setting: 0.01Hz
Analog setting: Max frequency ×0.1%
|
|
Torque rise
|
Auto torque rise, manual torque rise 10.0%
|
|
V/F curve
|
Three ways Linear V/F curve, square V/F curve, user self-defining V/F curve
|
|
Acceleration/deceleration curve
|
Optional time unit (Min/s), the longest: 6000s (settable in the range of 0.13600s).
|
|
DC braking
|
Be optional during both starting and stopping, the operating frequency: 020Hz,operating voltage level: 020%,operating time: settable within 020s
|
|
Jogging
|
Jogging frequency range: 0.1Hz50.00Hz,jogging acceleration and deceleration time: 0.13600s.
|
|
Built-in PID
|
It is convenient for forming closed loop control system, applicable for course control like pressure and flow, etc.
|
|
Multi-speed operating
|
Realize multi-speed running by built-in PLC or control terminal.
|
|
Weaving wobble frequency
|
Can get wobble frequency of adjustable central frequency
|
|
Auto voltage adjustment
|
When main voltage changes, the output voltage may be kept constant by adjusting PWM output (AVR function).
|
|
Auto energy-saving running
|
According to load condition, V/F curve can be optimized automatically to get the aim of energy-saving running.
|
|
Auto current limiting
|
Limit in-service current automatically, so as to avoid tripping for fault caused by frequent over current.
|
|
Sensorless vector control
|
Torsion characteristic
|
150% output of torque at 1Hz, rev accuracy: 0.1%
|
|
Motor parameters automatic read
|
Reading the parameters from motor when completely stop in order to achieve optimal controlling effect.
|
|
Running function
|
Running command passage
|
Setting of operating manual; setting of control terminal; setting of serial port; switching by three ways
|
|
